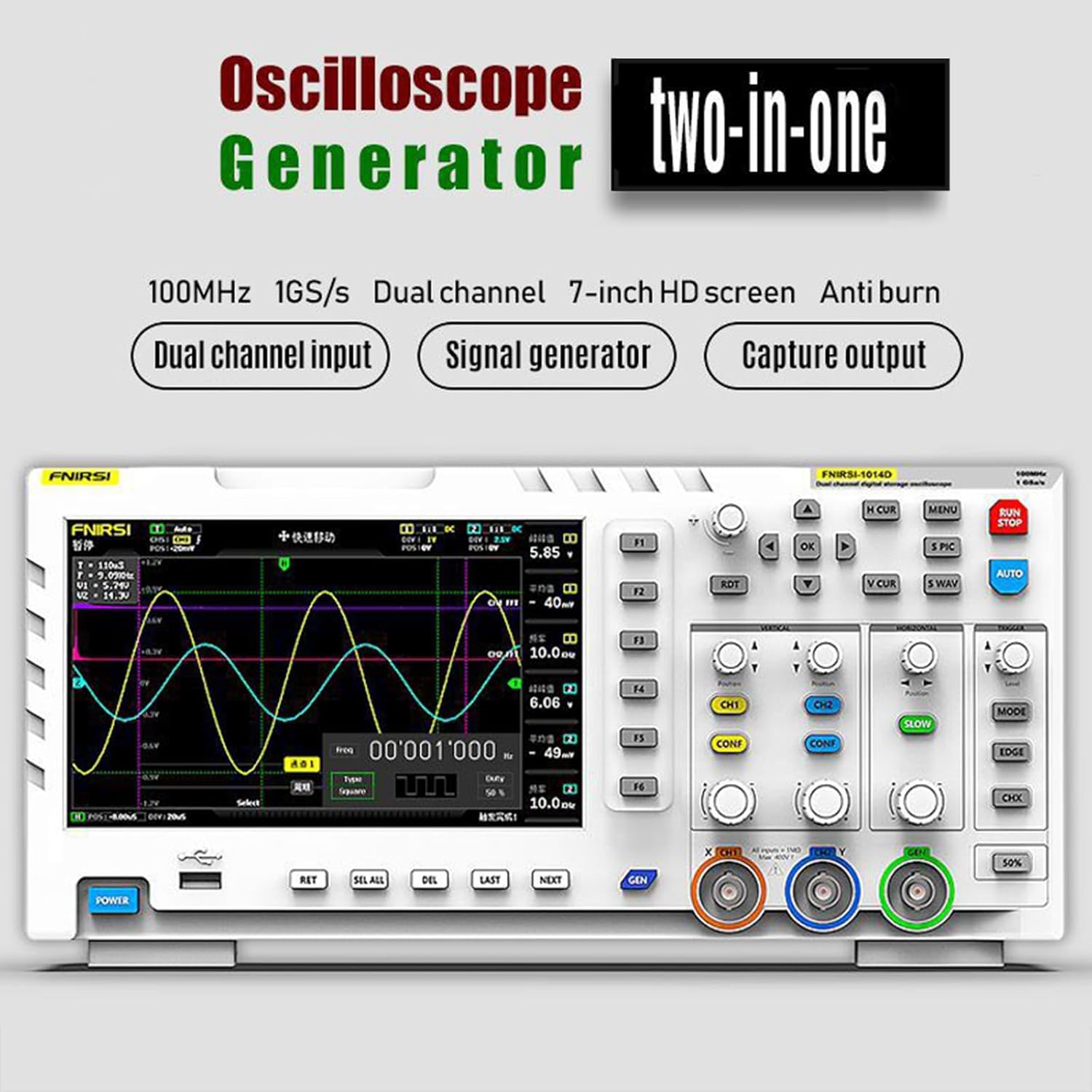

Imagine having a compact and versatile device that combines the power of an oscilloscope and a signal generator. The 2 Channel Oscilloscope ADS1014D is just that, offering a range of features designed to meet the needs of professionals in the maintenance and research and development industry. With a 7-inch color LCD screen, adjustable screen brightness, and background grid brightness, you can customize your viewing experience. The built-in DDS signal generator supports 12 kinds of functional signals, and the cursor measurement function allows for easy manual measurement of period, frequency, and voltage. With its high voltage protection module and one-button automatic waveform display and save functions, this oscilloscope is both convenient and reliable. Plus, with its 1GB storage space and USB interface, you can easily capture and analyze waveforms on your computer. Experience the power and convenience of the 2 Channel Oscilloscope ADS1014D, backed by our 100% satisfaction guarantee and dedicated customer service.
Why Consider This Product?
When it comes to finding a reliable and versatile oscilloscope, the 2 Channel Oscilloscope ADS1014D is definitely worth considering. This state-of-the-art device offers a range of features and benefits that make it a must-have for professionals in the maintenance and research and development industry.
One of the main reasons why you should consider this product is its 2-in-1 functionality as an oscilloscope and signal generator. This means that with a single device, you have the capability to both analyze waveforms and generate various functional signals. This versatility allows for greater convenience and efficiency in your work.
Additionally, the 2 Channel Oscilloscope ADS1014D boasts an impressive 100MHz bandwidth, ensuring accurate and precise measurements. Its built-in DDS signal generator supports 12 different kinds of functional signals, giving you even more flexibility in your waveform analysis. With the cursor measurement function, you can easily manually measure period, frequency, and voltage, making it a user-friendly device.
Features and Benefits
Thin and Light Design
The 2 Channel Oscilloscope ADS1014D features a thin and light design, making it incredibly portable and easy to carry around. Whether you’re working in the field or in a lab, this device can be conveniently transported without any hassle.
High-Resolution Color LCD Screen
Equipped with a 7-inch color LCD screen with an 800*480 resolution, this oscilloscope provides a bright and high-contrast display. You have the flexibility to adjust the screen brightness and background grid brightness according to your specific needs, ensuring optimal visibility and readability.
Built-in High Voltage Protection
One of the standout features of this oscilloscope is its built-in high voltage protection module. With the ability to withstand up to 400V continuous voltage, you can work with confidence, knowing that your device is protected and free from the risk of burning out. This feature is particularly beneficial for those working with high-voltage circuits.
Convenient Waveform Storage
The 2 Channel Oscilloscope ADS1014D comes with built-in 1GB storage space, allowing you to easily capture and store waveforms. With the capacity to store up to 1000 screenshots and 1000 groups of waveform data, you have more than enough room for your measurements. The ability to connect to a computer via USB also provides convenient access for secondary analysis.
Product Quality
When it comes to the quality of the 2 Channel Oscilloscope ADS1014D, you can rest assured that you’re investing in a reliable and durable device. This oscilloscope is built with high-quality components that are designed to withstand even the most demanding work environments.
Additionally, the intelligent anti-burn feature offers added protection to the device, preventing any damage that could be caused by excessive heat or voltage. This ensures that the oscilloscope remains in optimal working condition for years to come.
What It’s Used For
Electronics Maintenance
The 2 Channel Oscilloscope ADS1014D is an invaluable tool for electronics maintenance professionals. Whether you’re repairing circuit boards, troubleshooting electrical systems, or testing components, this oscilloscope provides accurate and detailed waveforms to help you identify and solve any issues quickly and efficiently.
Research and Development
For those working in research and development, this oscilloscope offers a wide range of useful functions. You can analyze signal spectrum characteristics using the FFT display function, enabling you to better understand the properties and behavior of various signals. The LISSAJOUS graphic display function allows for precise determination of amplitude, frequency, and phase contrast, providing valuable insights for experimental and analytical purposes.
Educational Purposes
The 2 Channel Oscilloscope ADS1014D is also a great tool for educational purposes. Whether you’re a student or a teacher, this oscilloscope allows for hands-on learning and application of theoretical concepts. With its user-friendly interface and comprehensive measurement parameters, students can gain a deeper understanding of waveform analysis and electronics.
Product Specifications
To give you a clear overview of the 2 Channel Oscilloscope ADS1014D’s specifications, here is a table summarizing its key features:
| Specifications | Details |
|---|---|
| Bandwidth | 100MHz |
| Screen Size | 7 inches |
| Display Resolution | 800×480 |
| Signal Generator | 12 kinds of functional signals |
| Cursor Measurement | Period, frequency, and voltage |
| High Voltage Protection | Up to 400V continuous voltage |
| One-Button Auto | Quick display of measured waveform |
| Storage Space | 1GB |
| Screen Capture | Up to 1000 screenshots + 1000 groups of waveforms |
| USB Interface | Connect to a computer for secondary analysis |
| FFT Display Function | Analyze signal spectrum characteristics |
| LISSAJOUS Graphic Display | Determine amplitude, frequency, and phase contrast |
| Parameter Measurements | VPP, VP, Vmax, Vmin, Vavg, Vrms, Frequency, Duty +, Duty -, Time +, Time -, Period |
Who Needs This
The 2 Channel Oscilloscope ADS1014D is a valuable tool for professionals working in the maintenance and research and development industry. Whether you’re an electronics technician, an engineer, or a scientist, this oscilloscope is designed to meet your specific needs.
Pros and Cons
Here are some pros and cons of the 2 Channel Oscilloscope ADS1014D:
Pros:
- 2-in-1 functionality as an oscilloscope and signal generator
- Thin and light design, easy to carry around
- High-resolution color LCD screen for optimal visibility
- Built-in high voltage protection module for added safety
- Convenient waveform storage with 1GB of storage space
- Extensive parameter measurements for precise analysis
Cons:
- May have a steeper learning curve for beginners
- Advanced features may be underutilized by less experienced users
FAQ’s
Q: Does this oscilloscope come with any certifications?
A: Yes, the 2 Channel Oscilloscope ADS1014D is certified for quality and safety standards.
Q: How long does the battery last?
A: This oscilloscope is powered by an AC adapter, ensuring continuous and reliable operation without the need for battery changes.
Q: Can I connect this oscilloscope to my computer?
A: Yes, you can conveniently connect the oscilloscope to your computer via the USB interface for secondary analysis and data transfer.
What Customers Are Saying
“I have been using the 2 Channel Oscilloscope ADS1014D for my electronics repair business, and it has been a game-changer. The quality of the waveforms and the ease of use make troubleshooting and diagnosing issues a breeze. Highly recommended!” – John D.
“Being a teacher, I needed an oscilloscope that was user-friendly for my students to learn with. The 2 Channel Oscilloscope ADS1014D ticks all the boxes. It is intuitive, reliable, and offers all the necessary measurements for educational purposes. My students love using it!” – Sarah T.
Overall Value
The 2 Channel Oscilloscope ADS1014D offers exceptional value for professionals in the maintenance and research and development industry. With its versatile functionality, high-quality build, and comprehensive range of measurements, this oscilloscope is a reliable and indispensable tool in the field.
Tips and Tricks for Best Results
To get the best results from the 2 Channel Oscilloscope ADS1014D, consider the following tips and tricks:
- Familiarize yourself with the various measurement parameters to make the most of the oscilloscope’s capabilities.
- Adjust the screen brightness and background grid brightness according to your specific needs and environment for optimal visibility.
- Make use of the cursor measurement function for quick and convenient manual measurement of period, frequency, and voltage.
Final Thoughts
Product Summary
In summary, the 2 Channel Oscilloscope ADS1014D is an advanced and versatile device that combines the functionality of an oscilloscope and a signal generator. With its high-resolution color LCD screen, built-in high voltage protection, extensive parameter measurements, and convenient waveform storage, this oscilloscope provides exceptional value for professionals in the maintenance and research and development industry.
Final Recommendation
If you’re looking for a reliable, user-friendly, and feature-packed oscilloscope, the 2 Channel Oscilloscope ADS1014D is definitely worth considering. Its impressive performance, durability, and comprehensive functionality make it an invaluable tool for electronics maintenance, research and development, and educational purposes. With a 100% satisfaction guarantee and excellent customer service, you can purchase this oscilloscope with confidence.
