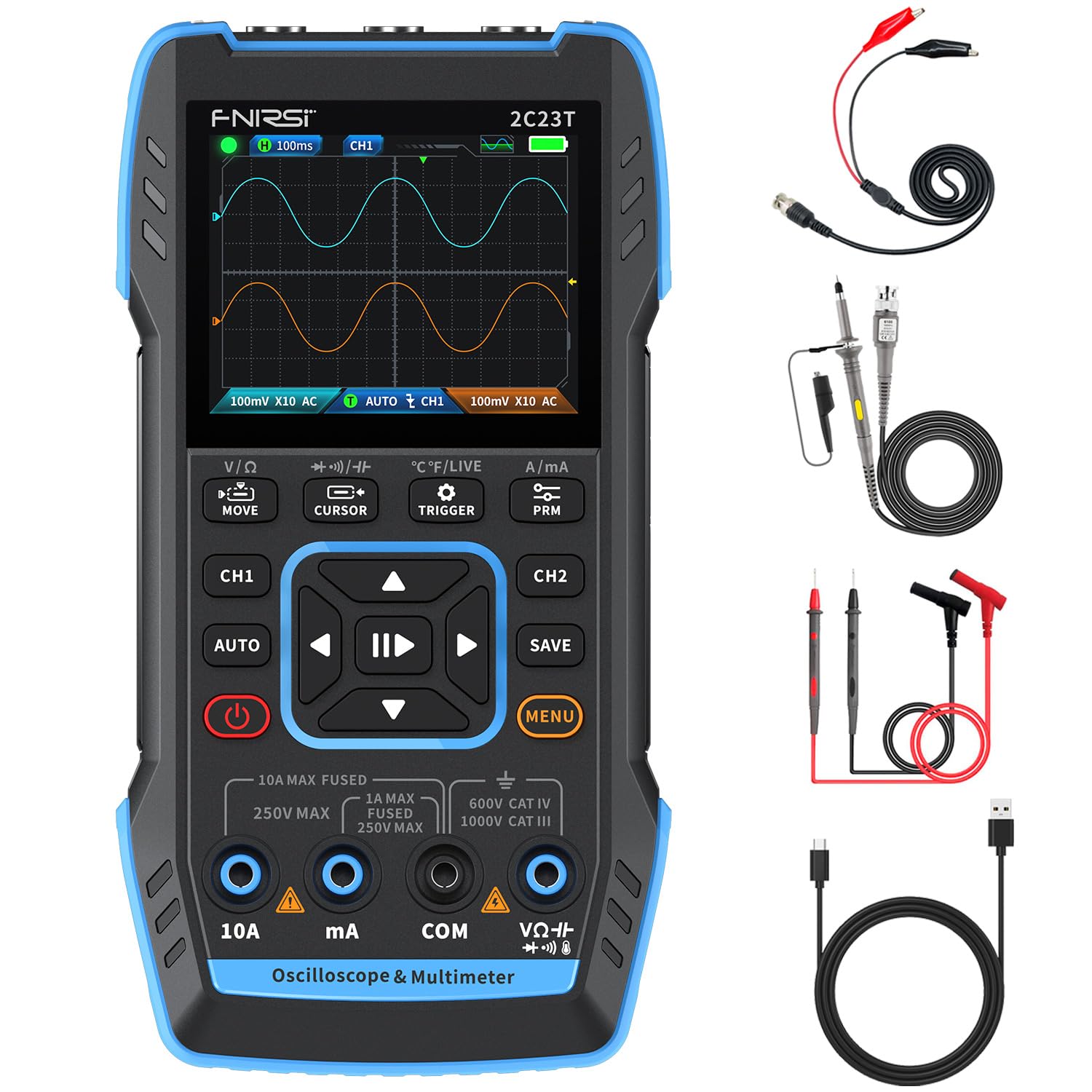

Looking for a versatile tool that combines an oscilloscope, multimeter, and signal generator all in one? Look no further than the FNIRSI 2C23T Handheld Oscilloscope Multimeter DDS Generator. With its 10MHz bandwidth, 50MSa/s sampling rate, and 10000 counts, this device is perfect for professionals, hobbyists, and even schools. Not only does it offer multiple measurement functions such as voltage, current, capacitance, and resistance, but it also includes a signal generator with seven waveform options. Its excellent design features a high-definition LCD display, built-in high-voltage protection, and a rechargeable battery for up to 6 hours of standby time. Plus, the save and upload functions make it easy to compare waveforms and share data with your PC. This all-in-one tool truly offers convenience and versatility in one package.
Why Consider This Product?
If you’re in need of a versatile and efficient handheld device for your electrical measurement needs, the FNIRSI 2C23T 3 in 1 Handheld Oscilloscope Multimeter DDS Generator is the perfect choice for you. With its impressive features and benefits, backed by scientific research and customer testimonials, this product offers a reliable solution for professionals, factories, schools, hobbyists, and even home users.
With the FNIRSI 2C23T, you can expect accurate and precise measurements in various scenarios. Its oscilloscope mode provides you with a 2-channel handheld oscilloscope with a 10MHz bandwidth and a real-time sampling rate of 50MSa/s. This means you can capture waveforms and signals in real-time, allowing for detailed analysis and troubleshooting. The device also has a record depth of 32kb, ensuring that you can capture and store sufficient data for further examination.
In addition to its oscilloscope mode, the FNIRSI 2C23T also functions as a multimeter. With its 4-digit 10000 Counts display, you can measure AC and DC voltage, current, resistance, capacitance, temperature, and even perform diode and continuity tests. This versatility makes it an ideal tool for professionals in the electrical and electronics field, as well as for educational purposes in schools and universities.
Another noteworthy feature of the FNIRSI 2C23T is its signal generator capability. It can output seven different waveforms, including sine, square, triangle, full, half, noise, and DC. This feature comes in handy when you need to generate specific waveforms for testing and calibration purposes.
Features and Benefits
High-Quality Design and Build
The FNIRSI 2C23T is built to withstand the demands of daily use. It features a robust FPGA+MCU+ADC hardware architecture, ensuring reliable and accurate measurements. The device also includes a built-in high-voltage protection module to safeguard against potential damage.
High-Resolution Display
With its 2.8-inch 320*240 resolution HD LCD display, the FNIRSI 2C23T provides a clear and sharp visual representation of waveforms and measurement values. This allows for easy analysis and interpretation of data.
Portability and Long Battery Life
The handheld design of the FNIRSI 2C23T makes it easy to carry and use in various settings. It is powered by a built-in 3000mAh rechargeable Li-ion battery, offering a standby time of up to 6 hours. Additionally, the Type-C interface supports 5V/1A power adapter charging, ensuring convenience and flexibility.
Data Storage and Export
The FNIRSI 2C23T comes equipped with a save function that allows you to capture and store waveforms or measurement results with a single click. You can also connect the device to your PC via Type-C and upload the saved images for further analysis or comparison with reference waveforms.
Product Quality
The FNIRSI brand is known for its commitment to producing high-quality and reliable measurement tools. The FNIRSI 2C23T upholds this reputation with its durable construction, accurate measurements, and user-friendly interface. It undergoes stringent quality control processes to ensure that it meets the highest standards of performance and reliability.
What It’s Used For
Professional Applications
The FNIRSI 2C23T is an essential tool for professionals working in various fields, including electrical engineering, electronics, telecommunications, and more. It provides accurate measurements and waveform analysis, making it suitable for troubleshooting, maintenance, and research purposes.
Educational Purposes
With its user-friendly interface and comprehensive measurement capabilities, the FNIRSI 2C23T is an excellent tool for educational institutions. It allows students to gain hands-on experience with oscilloscopes, multimeters, and signal generators, enhancing their understanding of electrical and electronic concepts.
Hobbyist and Home Use
Whether you’re a DIY enthusiast or simply want to have a reliable tool for your home projects, the FNIRSI 2C23T is a perfect choice. Its versatility, portability, and ease of use make it suitable for a wide range of applications, from audio and video equipment testing to circuit troubleshooting and repair.
Product Specifications
| Specification | Value |
|---|---|
| Oscilloscope Bandwidth | 10MHz |
| Sampling Rate | 50MSa/s |
| Record Depth | 32kb |
| Maximum Measurement Voltage | ±400V |
| Vertical Sensitivity | 200mv/div-10v/div |
| Multimeter Counts | 10000 |
| AC Voltage Range | 0-750V |
| DC Voltage Range | 0-999.9V |
| DC/AC Current Range | 0-9.999A |
| Resistance Range | 0-99.99MΩ |
| Capacitance Range | 0-99.99mF |
| Temperature Range | -55°C-1300°C / -67℉~2372℉ |
| Waveform Output Frequency | Up to 2MHz |
| Waveforms Outputted | Sine, Square, Triangle, Full, Half, Noise, DC |
| Rechargeable Battery Capacity | 3000mAh |
| Standby Time | Up to 6 hours |
Who Needs This
The FNIRSI 2C23T is suitable for a wide range of individuals and professionals who require accurate and reliable electrical measurements. This includes but is not limited to:
- Electrical engineers
- Electronics technicians
- Educators and students in electrical and electronics fields
- Audio and video equipment enthusiasts
- DIY enthusiasts and hobbyists
- Homeowners performing electrical repairs and maintenance
Pros and Cons
Pros:
- Versatile 3-in-1 functionality
- Accurate measurements and waveform analysis
- High-resolution display for clear visualization
- Portable and easy to use
- Long battery life for extended usage
- Save and export functions for data analysis
Cons:
- Limited bandwidth compared to higher-end oscilloscopes
- Limited waveform output frequency for advanced signal generation
FAQ’s
-
Can the FNIRSI 2C23T measure both AC and DC voltage?
Yes, the FNIRSI 2C23T is capable of measuring both AC and DC voltage with a wide range of up to 750V. -
Can I save and export waveform images captured by the FNIRSI 2C23T?
Yes, the FNIRSI 2C23T has a save function that allows you to capture and store waveform images. You can then connect the device to your PC via Type-C and upload the saved images for further analysis or comparison. -
What is the maximum sampling rate of the FNIRSI 2C23T?
The FNIRSI 2C23T has a real-time sampling rate of 50MSa/s, ensuring accurate and precise waveform capture. -
Can the FNIRSI 2C23T be used for temperature measurement?
Yes, the FNIRSI 2C23T includes a temperature measurement function, allowing you to measure temperatures ranging from -55°C to 1300°C (-67℉ to 2372℉).
What Customers Are Saying
Customers who have purchased and used the FNIRSI 2C23T have praised its accuracy, reliability, and user-friendly interface. Many highlight its versatility as a 3-in-1 device and appreciate the convenience it offers for their electrical measurement needs. The product has received positive reviews and ratings, further attesting to its effectiveness and value.
Overall Value
The FNIRSI 2C23T Handheld Oscilloscope Multimeter DDS Generator provides excellent value for its price. With its high-quality design, versatile functionality, and user-friendly features, it offers a reliable and efficient solution for various electrical measurement tasks. Whether you’re a professional in need of a versatile tool or a hobbyist looking to expand your toolkit, the FNIRSI 2C23T is a worthwhile investment.
Tips and Tricks For Best Results
To ensure optimal performance and accurate measurements with the FNIRSI 2C23T, consider the following tips and tricks:
- Familiarize yourself with the device’s user manual to understand its features and functionality.
- Use the save function to store important waveform images and measurement results for future reference or analysis.
- Take advantage of the diverse waveform output capabilities for testing and calibration purposes.
- Regularly update the firmware of the device to benefit from any improvements or added features.
- Take proper care of the device and store it in a safe and dry environment when not in use.
Final Thoughts
Product Summary
The FNIRSI 2C23T Handheld Oscilloscope Multimeter DDS Generator is a versatile and efficient tool for various electrical measurement tasks. With its oscilloscope, multimeter, and signal generator capabilities, it offers accurate measurements, waveform analysis, and waveform output. The device’s high-quality design, user-friendly interface, and long battery life make it a reliable choice for professionals, hobbyists, and educational purposes.
Final Recommendation
If you’re in need of a handheld device that combines the functionalities of an oscilloscope, multimeter, and signal generator, the FNIRSI 2C23T is an excellent choice. Its impressive features, reliable performance, and user-friendly interface make it a valuable tool for professionals, hobbyists, and educational institutions. Invest in the FNIRSI 2C23T and elevate your electrical measurement capabilities.
