- Force Gauge Stand Manual Force Test Stand Push Pull Gauge (for ZMF Force Gauge)
- 500N/50KG Horizontal Spiral Test Stand
- Accusize Industrial Tools PhaseII+ Support Stand for Force Gauges, AFG-1000
- Digital Force Gauge Rack Push Pull Gauge with Stand
- Mark-10 ES10 Manual Test Stand
- Neoteck Magnetic Base Stand for Digital Dial Indicator Gauge
- BAOSHISHAN Manual Force Test Stand Manual Tension Push Pull Test Stand Horizontal Spiral Type Stroke 220mm with 1 x HJJ-001 Clamp (APW)
- 50N Digital Force Gauge Push Pull Gauge Portable Force Meter (ZMF-50N)
- Force Gauge Stand Push Pull Force Test, Stand Tension Test, Stand Manual Test Stand, Horizontal Spiral Type Stroke, Trigger Pull Weight Gauge Hand Dynamometer
- Buyer’s Guide
- Conclusion
- Frequently Asked Questions
- What is a force gauge stand used for?
- Can I use any force gauge with a test stand?
- What is the maximum load capacity for these stands?
- Are manual or digital stands better for testing?
- How do I maintain a force gauge stand?
- What industries commonly use force gauge stands?
- Do these stands come with force gauges included?
Key Takeaways
- Manual and digital stands for force gauge offer excellent control and measurement of compression and tension for a variety of applications including textiles, rubber, and manufacturing.
- All stands feature flexible mounting and ergonomic designs, allowing for comfortable one-hand handling and adaptability to different testing environments and sample sizes, even in tight spaces.
- Load capacities among models vary from 50 N to 1,000 N, giving users the option to select the stand that is best suited to their testing needs and material strength.
- Several products include easy assembly, real time data logging and compatibility with various force gauges to streamline your workflow and minimize setup time.
- Digital scales, auto power-off, and durable construction provide long-term reliability, accurate measurements, and energy savings during repeated test cycles.
- For the best experience, users can choose stands that correspond with their force gauge models and utilize accessories like clamps and magnetic bases to secure stability and accuracy in every test.
A force gauge stand is a device designed to hold and support a force gauge for precise measurement of tension or compression force. These stands provide superior stability, making them essential for applications in the lab, quality control, and production environments. Most stands are manually or motorized controlled, enabling users to maintain consistent speeds and increase repeatability. For example, measuring the strength of a plastic clip or the push force required to click a button usually requires a stand to prevent unstable hand motion.
Force Gauge Stand Manual Force Test Stand Push Pull Gauge (for ZMF Force Gauge)
Working with the Mxmoonfree manual force test stand feels rock-solid and controlled, courtesy of its hand-wheel design. The vertical stand holds the force gauge secure, allowing testers to perform compression and tension tests with the same frame. Pairing this stand with a ZMF model digital force gauge is a no-brainer for labs or workshops where push-pull load testing comes up frequently, such as measuring insertion force in electrical components or testing mechanical hardware. The two included 500 newton clamps provide a lot of flexibility for various sample types. The stroke of 250 millimeters encompasses most normal test requirements. Installation is simple, with the mounting plate accommodating ZMF gauges straight from the box. Sturdy construction, easy controls, and a no-nonsense approach to function make it a smart choice for anyone seeking hassle-free repeatable mechanical testing.
| Category | Specifications |
|---|---|
| Product Type | Vertical manual force test stand |
| Color | Metallic silver |
| Material | Steel |
| Style | Industrial |
| Operation Type | Hand-wheel operated |
| Mount Type | Tabletop |
| Assembly Requirement | Minimal assembly required |
| Maximum Load/Tensile Strength | 500 N (with included clamps) |
| Stroke Length | 250 mm |
| Overall Dimensions | 140 x 210 x 490 mm |
| Packaging Size | 550 x 250 x 170 mm |
| Gross Weight | 5.9 kg |
| Product Features | Compression/Tension testing, easy-grip hand-wheel |
| Fit | ZMF model force gauge (mounting plate with dual sets of holes) |
| Application Industries | Electric, hardware, automotive, quality control, R&D |
| Accessories | 2 clamps (500 N) |
| Surface Treatment/Finish | Powder-coated finish |
| Ergonomics/Usability | Stable base, easy controls |
| Testing Capabilities | Compression and tension testing |
| BRANDS | Mxmoonfree, 1 year warranty |
500N/50KG Horizontal Spiral Test Stand
Then, for people looking for consistent and basic tension testing, the 500N/50KG Horizontal Spiral Test Stand is a sturdy choice. Its gear and rack system holds the entire assembly stable even with heavier loads up to 500 newtons. Hand pressure operation feels smooth thanks to the rack-and-pinion style, aiding in steady, repeatable movement. The digital scale (ALX-J) provides real-time travel data, so results are clean and simple to record. Compact in design, it fits on most lab tables without occupying much space, barely 480 by 205 mm. Millions in rubber, textiles, wire, and building industries rely on it for repeat tension testing. For custom push-pull gauge requirements, contacting the manufacturer is recommended, as this component is not provided. The straightforward controls and rugged design make it accessible to beginners and experienced users alike.
| Category | Specifications |
|---|---|
| Product Type | Horizontal push-pull force test stand |
| Color | Silver/Gray |
| Material | Alloy/Steel |
| Style | Compact, bench-top |
| Operation Type | Hand pressure, rack-and-pinion |
| Mount Type | Table installation |
| Assembly Requirement | Minimal |
| Maximum Load/Tensile Strength | 500N/50KG |
| Stroke Length | Not specified |
| Overall Dimensions | 480x205x105MM |
| Packaging Size | Not specified |
| Gross Weight | 4KG |
| Design Features | Gear, rack-type transmission, digital scale (ALX-J) |
| Compatibility | Compatible with various push-pull gauges (not included) |
| Application Industries | Rubber, plastics, textiles, light industry, composites, wire, cable, building materials |
| Accessories Included | Digital scale (ALX-J) |
| Surface Treatment/Finish | Not specified |
| Ergonomics/Usability | Hand pressure operation, smooth movement |
| Testing Capabilities | Tension/tensile experiments |
| Brand Information | Gdrasuya10, ASIN: B08S78F14T |

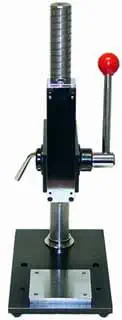

Accusize Industrial Tools PhaseII+ Support Stand for Force Gauges, AFG-1000
When we first cast our eyes on the Accusize Industrial Tools PhaseII+ Support Stand for Force Gauges, AFG-1000, the design jumped out for the flexibility it adds to a test bench. With a universal build to fit a wide range of force gauges, it’s easy to set up to conduct insertion, pull, push, or break tests. It includes bench, wall, or even horizontal mounting options, so this stand fits well for any labs or workspace setup. Lever activation allows users to achieve fast, consistent results, saving time without sacrificing accuracy. The frame accommodates tension and compression tests and captures peak forces in metric or inch units, which seems ideal for cross-border teams or projects. The compact body and light weight assist when transitioning between rooms or to a job site, while its rugged construction resists daily abuse. The stand fits a variety of industries requiring push-pull or fracture testing, ranging from assembly line operations to quality control laboratories.
| Category | Specifications |
|---|---|
| Product Type | Force Gauge Support Stand |
| Color | Gray |
| Material | Metal |
| Style | Universal, Compact |
| Operation Type | Lever Activated |
| Mount Type | Bench, Wall, Horizontal |
| Assembly Requirement | Minimal |
| Maximum Load/Tensile Strength | Varies by attached force gauge |
| Stroke Length | Not specified |
| Overall Dimensions | 15.2 x |
| 23.5 x 40 cm |
| Package Size | – | | Gross Weight | 10 kg | | DESIGN | Lightweight, rugged, easy to use | | Compatible with most force gauges and grips | | Application Industries | Manufacturing, QC, R&D, labs | | Accessories | n/a | | Surface Treatment/Finish | Powder coated metal | | Ergonomics/Usability | 360-degree access, easily maneuverable | | Testing Capabilities | Tension, compression, insertion, withdrawal, fracture | | Accusize Industrial Tools, Phase II+ |
Digital Force Gauge Rack Push Pull Gauge with Stand
The Digital Force Gauge Rack Push Pull Gauge with Stand comes in as a trusted choice for anyone requiring precise force measurements in daily lab or workshop applications. Constructed from iron with a smooth electroplated surface, the stand can effortlessly support up to 1000N, suiting both light and heavy-duty testing requirements. The height is 46cm, with a stroke length of 27cm, so there is plenty of room for varying sample sizes. With its robust, wide base, the unit stays put even at max load. It is easy to install and setting it up goes quick because all the necessary pieces are included in the box. The ergonomic grip reduces hand fatigue, even on extended test runs. Popular in electronics, auto parts, and textiles, this rack adds both versatility and precision to numerous work environments.
Mark-10 ES10 Manual Test Stand
Working with the Mark-10 ES10 Manual Test Stand is hands-on for labs and workrooms that want to test small samples without hassle. Lever operation provides a rapid stroke for testing, and when more control is necessary, the hand wheel conversion offers more consistent, repeatable outcomes. Its compact shape requires not much space, and it fits right on most benches. Despite its more compact design, it still manages up to 445 N, which proves useful for many compression or pull testing. Its obvious priority on straightforward operation prevents everything from becoming too convoluted for first-time users or hectic organizations. Designed for tight budgets, the unit still stands up to daily use. Many people utilize it for components such as wires, springs, or miniature plastics. The Mark-10 ES10 satisfies routine testing requirements without excess capacity.
| Category | Specifications |
|---|---|
| Product Type | Manual Test Stand |
| Color | Metallic Gray |
| Material | Steel/Aluminum |
| Style | Compact, Bench-Top |
| Operation Type | Lever-Operated (Hand Wheel Optional) |
| Mount Type | Bench/Desk Mount |
| Assembly Requirement | Minimal, User Assembly |
| Maximum Load/Tensile Strength | 445 N (100 lbF) |
| Stroke Length | ~76 mm (3 in) |
| Overall Dimensions | Approx. 150 x 400 x 200 mm |
| Packaging Size | Approx. 200 x 450 x 250 mm |
| Gross Weight | About 8 kg |
| Design Features | Quick-Action Lever, Optional Hand Wheel |
| Compatibility | Mark-10 Force Gauges |
| Application Industries | Lab, Electronics, Plastics, General QC |
| Accessories Included | Mounting Hardware |
| Surface Treatment/Finish | Powder-Coated, Anodized |
| Ergonomics/Usability | Simple Controls, Easy Sample Loading |
| Testing Capabilities | Compression & Tensile |
| Brand Information | Mark-10, US-based Precision Tools |
Neoteck Magnetic Base Stand for Digital Dial Indicator Gauge
Examining the Neoteck Magnetic Base Stand, the first thing that pops out is the robust magnet. It supports up to 80kg on surfaces as thin as 30mm, so it remains firmly attached to most machine tables or workbenches. The rotary joint moves in numerous directions, making the positioning of a dial indicator a breeze. The arms provide a respectable reach of approximately 36cm in total height, allowing users to inspect large or small components. The clamping hole accommodates most dial indicators, so swapping gauges is easy. In busy shops, this is the time when folks need to switch setups. Its solid metal build and bright finish mean it holds up even with daily use. In toolrooms or on factory lines, this base eliminates hassle and holds securely for accurate measurements, regardless of the task.
| Category | Specifications |
|---|---|
| Product Type | Magnetic Base Stand |
| Color | Silver/Black |
| Material | Metal |
| Style | Adjustable Arm |
| Operation Type | Manual |
| Mount Type | Magnetic |
| Assembly Requirement | Minimal |
| Maximum Load/Tensile Strength | 80 kg (176 lbs) |
| Stroke Length | Not specified |
| Overall Dimensions | 35.8 cm (14.1 in) height; lower arm |
| 12.7 cm (5 in); upper arm | |
| 11.4 cm (4.5 in) |
| Package Dimensions | 10 x 10 x 16.3 cm / 3.94 x 3.94 x 6.42 inches |
| Gross Weight | 1.33 kg (2.93 lbs) |
| Design Features | Flexible rotary joint, dual magnetic surfaces | | Compatibility | Most dial and lever test indicators | | Industries | Metalworking, Manufacturing, Quality Control | | Accessories | None | | Surface Treatment/Finish | Polished/Coated | | Ergonomics/Usability | Angle adjustment is easy and locking is simple | | Testing Capabilities | Supports dial and lever test indicator measurements | | Brand | Neoteck |
BAOSHISHAN Manual Force Test Stand Manual Tension Push Pull Test Stand Horizontal Spiral Type Stroke 220mm with 1 x HJJ-001 Clamp (APW)
For manual force testing that requires precision, the BAOSHISHAN Manual Force Test Stand is a clever choice. Use the handwheel for fine adjustments and the spiral drive ensures smooth, even movements. The frame, solid steel and compact at just over 4kg, fits nicely on crowded benches or labs with limited space. The micro-serrated HJJ-001 clamp grabs samples tightly, so even slick plastics or wires do not slip. With a 220mm stroke and a 500N load capacity, this test stand meets many fundamental pull or compression test needs, such as pulling wire or pressing plastics in quality control tests. The M6-thread mount is compatible with a variety of gauges, making instrument swapping easy. Quick start-up with included hardware means less fuss. Warranty and lifetime support back this tool and provide peace of mind for labs and workshops looking for steady, repeatable results.
| Category | Specifications |
|---|---|
| Product Type | Manual Force Test Stand |
| Color | Silver/Gray |
| Material | Hardened Steel |
| Style | Horizontal Spiral |
| Operation Type | Manual Handwheel |
| Mount Type | Bench/Tabletop |
| Assembly Requirement | Minimal; includes hardware and hex wrench |
| Maximum Load/Tensile Strength | 500 N |
| Stroke Length | 220 mm |
| Overall Dimensions | Compact, fits standard lab benches |
| Packaging Size | Not specified |
| Gross Weight | 4 kg (9 lbs) |
| Design Features | Micro-serrated jaws, spiral mechanism |
| Compatibility | M6-threaded force gauges |
| Application Industries | QC labs, electronics, plastics, metalworking |
| Accessories Included | 1×HJJ-001 mobile clamp, fixed clamp, hardware |
| Surface Treatment/Finish | Hardened steel, corrosion resistant |
| Ergonomics/Usability | Simple handwheel, compact size |
| Testing Capabilities | Tensile and compression |
| Brand Information | BAOSHISHAN, 1-year warranty, lifetime support |
50N Digital Force Gauge Push Pull Gauge Portable Force Meter (ZMF-50N)
Next up, the ZMF-50N shines with its combination of accuracy and simplicity. Switching between Newton, kilogram, pound, and ounce readings comes easy, making it suitable for labs and shop floors everywhere. It measures as delicately as 0.01 newton, and the precision holds firm at ±1%. Real-time and PEAK modes allow users to monitor both continuous and maximum force, which is useful for inspecting components or conducting quality testing. Auto shutoff keeps battery swaps rare, and the setup requires only two AAA batteries, which are simple to swap out anywhere. Its compact body, weighing only 400g, fits in one hand so you can sample parts or products on the fly. Many techs in the electric, hardware, or auto fields grab this tester to verify insertion force or pull strength. The min force shield filters out small jitters, so only real results are displayed on the screen.
Force Gauge Stand Push Pull Force Test, Stand Tension Test, Stand Manual Test Stand, Horizontal Spiral Type Stroke, Trigger Pull Weight Gauge Hand Dynamometer
When working with the EEYBLAEEY force gauge stand, you gain a practical edge in the laboratory, workshop, and even cramped work benches. Hand-wheel action assists with a steady grip and smooth control, which is great when calibrating pull or push tests. Constructed with a combination of iron and plastic, the frame has a solid but not too weighty feel, so transporting it between locations remains a breeze. With a maximum tensile strength of 500N, the stand copes with a range of gear tests, such as breaking points on wires or plastics. The horizontal layout accommodates small workspaces, which is good for bench setups with limited space. By swapping in different force gauges, users can configure for all kinds of test work from textiles to cables. Clamps and Allen keys complete the kit, and bubble bag packaging adds just a little more security in shipping.
| Category | Specifications |
|---|---|
| Product Type | Manual Force Gauge Stand |
| Color | Black |
| Material | Iron, Plastic |
| Style | Modern |
| Operation Type | Hand-wheel Operated |
| Mount Type | Free Standing |
| Assembly Requirement | Yes |
| Maximum Load/Tensile Strength | 500N/50kg |
| Stroke Length | 22cm/8.66inch |
| Total Size | 48×20.5×10.55 cm/18.9×8.07×4.15 inch |
| Package Size | 43×12×13 cm / 16.93 × 4.72 × 5.12 inch |
| Gross Weight | 6kg/13.23lbs |
| Design | Portable, removable, lightweight, horizontal-type |
| Fit | Different force gauges |
| Application industries | Plastics, textiles, cables, composites, light industry |
| Accessories Included | Clamps, Allen Key Set |
| Surface Treatment/Finish | Bake Paint |
| Ergonomics/Usability | Simple to operate, occupies little space |
| Testing Capabilities | Tensile, push-pull, break point tests |
| BRAND | EEYBLAEEY – sports/outdoor, built to survive |
Buyer’s Guide
Selecting the appropriate force gauge stand is not merely a matter of cost or aesthetics. Number one, look at the maximum load each stand can support. In the case of testing heavy items, the 500N/50KG Horizontal Spiral Test Stand works for up to 110 pounds. Consider what force gauge you already utilize. If you’ve already got a ZMF Force Gauge, the Force Gauge Stand Manual Force Test Stand Push Pull Gauge fits like a glove. You need a stand that’s simple to assemble and operate because no one wants to spend hours setting up. For real toughness in busy labs, metal builds like the Accusize Industrial Tools PhaseII+ Support Stand are ideal. Some projects require a horizontal arrangement while others require vertical; the Mark-10 ES10 Manual Test Stand offers more versatility. Be sure to pair the stand with your typical test jobs—pull, push, or both—so it integrates seamlessly into your work.
Conclusion
Force gauge stands provide real assistance to testing tasks. They keep gear stable and eliminate guesswork. Several models suit broad work—from tiny laboratories to large workshop floors. Brands such as Mark-10 and Accusize exhibit distinct construction and durable steel. Stands with digital screens accelerate inspections, whereas hand models suffice for brief stints. Selecting the appropriate stand is a function of force required, available real estate, and budget. Every stand on the list above exhibits smart use, obvious benefits, and strong worth. To find the right fit, balance your needs against what each model provides. Need more advice or have a tough test case? Drop by my blog and join the chat.
Frequently Asked Questions
What is a force gauge stand used for?
With a force gauge stand, force gauges have a solid footing for accurate and repeatable push and pull testing experiences. It is very popular for tension, compression, and insertion force testing in multiple industries.
Can I use any force gauge with a test stand?
Most stands accept standard force gauges, but verify mounting requirements and capacity. Certain stands are model or brand specific, so check for compatibility prior to buying.
What is the maximum load capacity for these stands?
Load capacities differ based on model and range generally from 50N to 1,000N. Be sure to check the stand’s max load beforehand.
Are manual or digital stands better for testing?
Manual stands provide easy-to-use operation and are economical for simple testing. Digital stands typically allow for more nuanced control and data collection and are favored for sophisticated or high-volume testing.
How do I maintain a force gauge stand?
Maintain the stand by keeping it clean, inspecting moving parts, and adhering to the manufacturer’s maintenance instructions. This care will help produce accurate test results and extend the life of the equipment.
What industries commonly use force gauge stands?
Force gauge stands find applications in electronics, automotive, hardware, textiles, plastics, and quality control labs. They are a must-have wherever you need to accurately measure tension or compression.
Do these stands come with force gauges included?
Most stands don’t come with a force gauge. These are generally sold separately. Make sure you check the product specs to see exactly what’s included.
