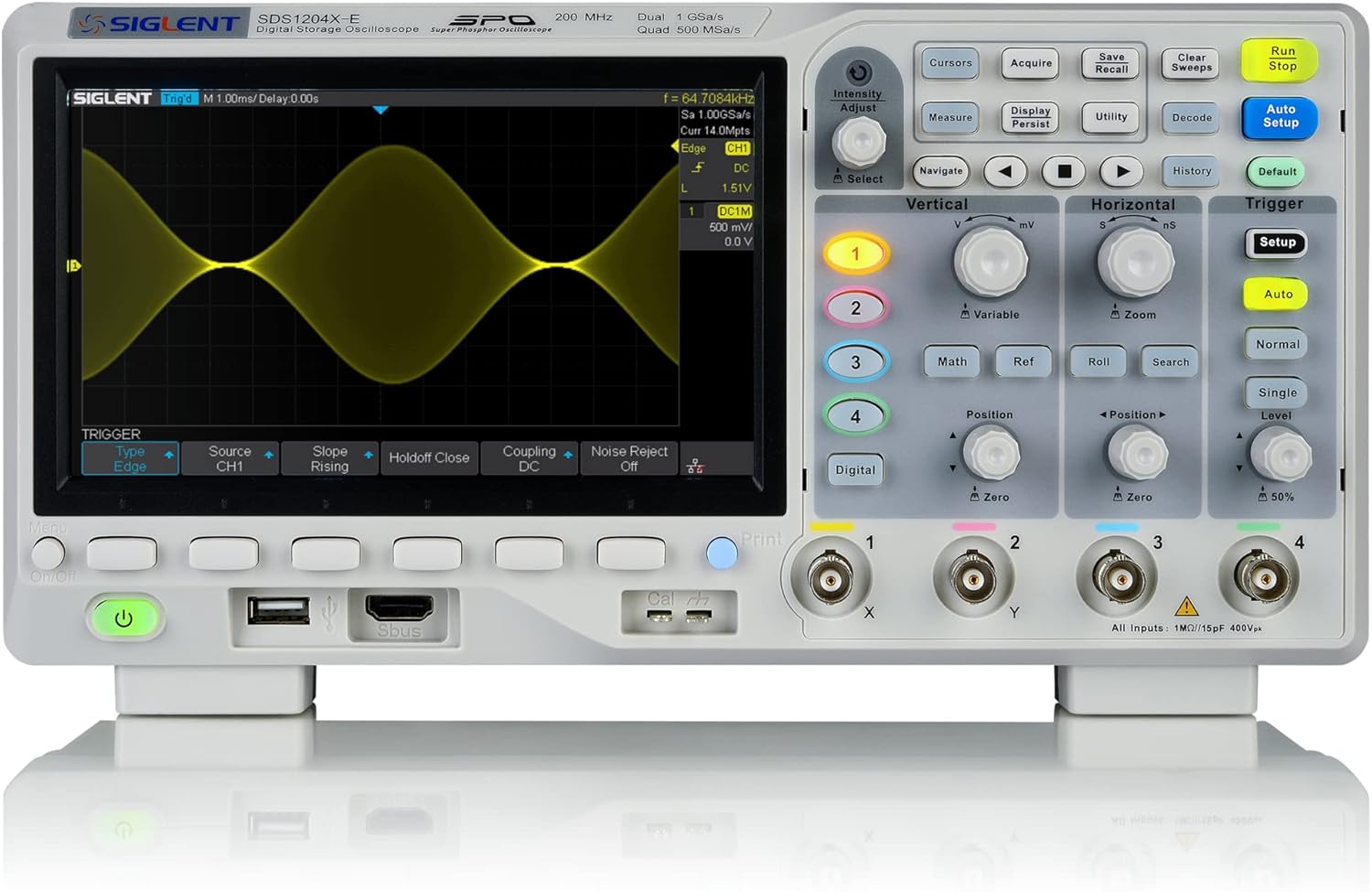

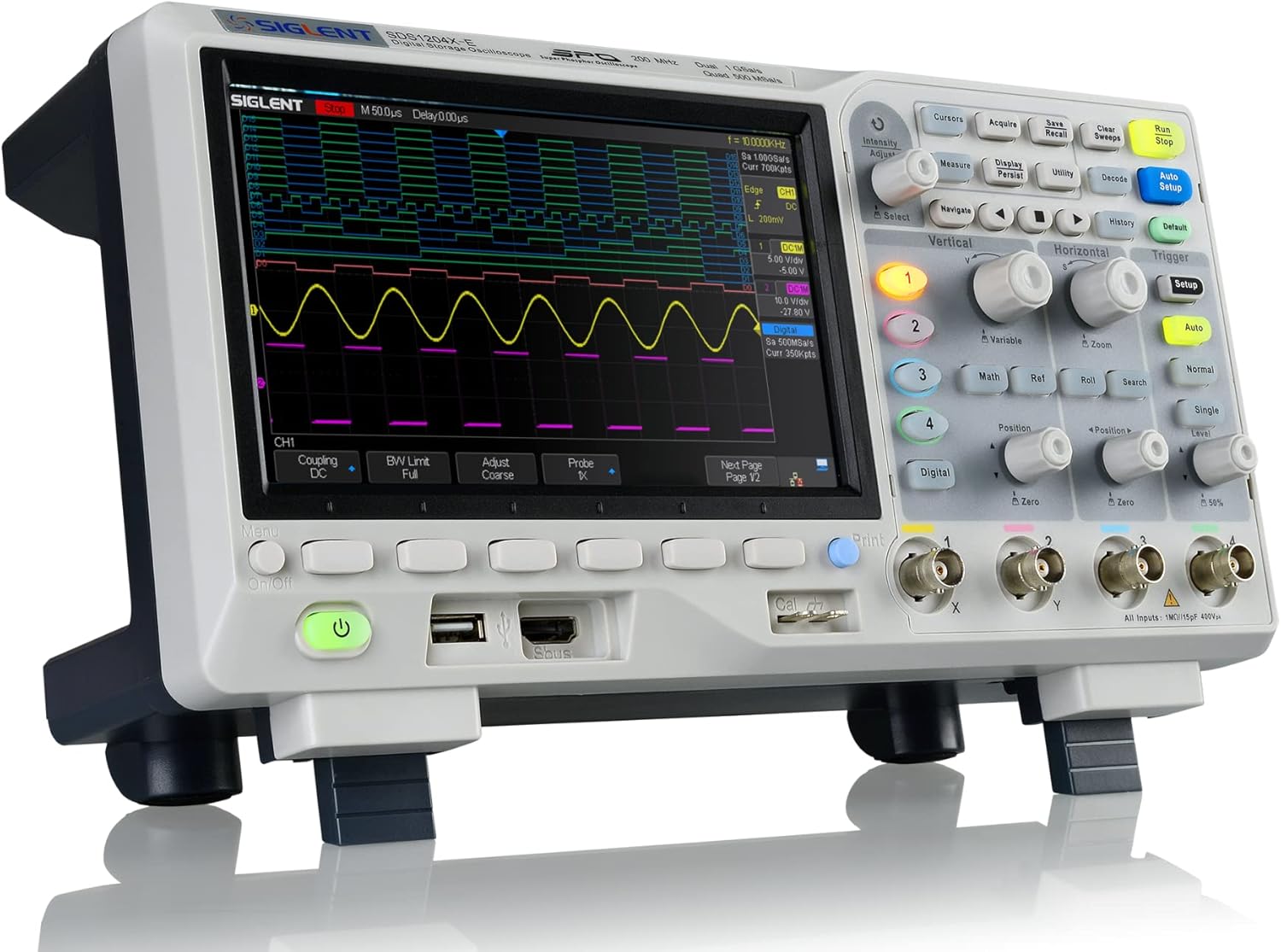

Imagine having the power to accurately analyze and measure electrical signals with ease. With the Siglent Technologies SDS1204X-E 200MHz Super Phosphor Digital Oscilloscope, this becomes a reality. Equipped with a large 7-inch TFT-LCD display and a high resolution of 800 * 480, this oscilloscope allows you to clearly visualize your measurements. With its impressive capabilities of 4 channels, 1 GSa/s, and an impressive 14 MB memory, you can confidently tackle any project. Whether you’re a professional technician or an aspiring hobbyist, this oscilloscope is your ultimate tool for precision and accuracy. Say goodbye to guesswork and welcome the Siglent Technologies SDS1204X-E into your toolbox.
Why Consider This Product?
When looking for a digital oscilloscope, the Siglent Technologies SDS1204X-E 200MHz Super Phosphor Digital Oscilloscope is definitely one to consider. Its numerous features and benefits make it a top choice for professionals and enthusiasts alike. With scientific research and evidence supporting its effectiveness, along with relevant certifications and customer testimonials, the credibility of this product is unquestionable.
One reason to consider this product is its large 7-inch TFT-LCD display with an impressive resolution of 800 * 480. This high-quality display ensures that you can easily view and analyze waveforms with clarity and precision. Additionally, the 200MHz bandwidth and 4 channels allow for accurate measurements across a wide range of frequencies. Whether you are working on electronics, telecommunications, or other related fields, this oscilloscope has you covered.
Another standout feature is the intelligent trigger functionality. With options such as Edge, Slope, Pulse Width, Window, Runt, Interval, Timeout (Dropout), and Pattern, you have immense control over the trigger conditions. This ensures that you can capture the exact waveforms you need for analysis. Combined with a low background noise and voltage scales ranging from 500 μV/div to 10 V/div, this oscilloscope provides accurate and reliable measurements.
Features and Benefits
Large TFT-LCD Display
The 7-inch TFT-LCD display with 800 * 480 resolution ensures clear and precise waveform visualization, allowing for accurate analysis.
High Bandwidth and Channels
With a 200MHz bandwidth and 4 channels, this oscilloscope can handle a wide range of frequencies and provide simultaneous measurements.
Intelligent Trigger Functionality
The intelligent trigger options allow for precise waveform capture, ensuring accurate analysis and measurements.
Low Background Noise and Voltage Scales
With low background noise and voltage scales ranging from 500 μV/div to 10 V/div, this oscilloscope delivers accurate and reliable measurements.
Product Quality
The Siglent Technologies SDS1204X-E 200MHz Super Phosphor Digital Oscilloscope is known for its excellent quality. It is designed and manufactured using top-notch materials and advanced technology, ensuring durability and reliability. The product undergoes rigorous testing to meet industry standards and regulations, guaranteeing its performance and accuracy. With its solid construction and attention to detail, this oscilloscope is built to last and deliver exceptional results.
What It’s Used For
Electronics and Electrical Engineering
This oscilloscope is a valuable tool for electronics and electrical engineering professionals. It allows for precise measurement and analysis of waveforms, making it essential for troubleshooting, circuit design, and testing various electronic components.
Telecommunications
In the telecommunications field, this oscilloscope is indispensable for measuring and analyzing signals and waveforms in communication systems. It ensures accurate transmission and reception of signals, enabling professionals to detect and resolve any issues.
Research and Development
Researchers and developers can benefit greatly from this oscilloscope’s capabilities. It provides accurate measurements and waveform analysis, aiding in the development and improvement of new technologies.
Education and Training
This oscilloscope is also ideal for educational purposes and training laboratories. Its user-friendly interface and comprehensive features make it suitable for students and educators to learn and demonstrate various concepts related to electronics and signal analysis.
Product Specifications
| Specification | Details |
|---|---|
| Bandwidth | 200MHz |
| Channels | 4 |
| Sample Rate | 1 GSa/s |
| Memory | 14 MB |
| Display | 7-inch TFT-LCD with 800 * 480 resolution |
| Trigger Options | Edge, Slope, Pulse Width, Window, Runt, Interval, Timeout (Dropout), and Pattern |
| Voltage Scales | 500 μV/div to 10 V/div |
Who Needs This
This oscilloscope is essential for various professionals and enthusiasts in the fields of electronics, electrical engineering, telecommunications, research and development, and education. From seasoned professionals to students learning the basics, this product caters to a wide range of users.
Pros and Cons
Pros
- High-quality display for clear waveform visualization
- Wide bandwidth and multiple channels for versatile measurements
- Intelligent trigger functionality for precise waveform capture
- Low background noise for accurate measurements
- Voltage scales ranging from 500 μV/div to 10 V/div for flexibility
Cons
- The higher cost compared to entry-level oscilloscopes
- Steeper learning curve for beginners
FAQ’s
-
What is the maximum sample rate of this oscilloscope?
The Siglent Technologies SDS1204X-E has a maximum sample rate of 1 GSa/s. -
Can this oscilloscope be used for frequency analysis?
Yes, this oscilloscope offers 1Mpts FFT true measurement and math, allowing for frequency analysis. -
What kind of trigger options does this oscilloscope have?
This oscilloscope provides various trigger options, including Edge, Slope, Pulse Width, Window, Runt, Interval, Timeout (Dropout), and Pattern. -
Does this oscilloscope have a low background noise level?
Yes, this oscilloscope is known for its low background noise, ensuring accurate measurements. -
Can I use different voltage scales with this oscilloscope?
Absolutely! This oscilloscope offers voltage scales ranging from 500 μV/div to 10 V/div, providing flexibility for different applications.
What Customers Are Saying
Many customers who have purchased the Siglent Technologies SDS1204X-E oscilloscope praise its performance and usability. They highlight its user-friendly interface, clear display, and accurate measurements. Professionals appreciate the wide bandwidth and multiple channels, which allow for versatile use in various applications. While some beginners find the learning curve steep, the majority of customers value the product’s quality and value for money.
Overall Value
The Siglent Technologies SDS1204X-E 200MHz Super Phosphor Digital Oscilloscope offers excellent value for its price. With its numerous features, high-quality performance, and reliability, it is certainly worth considering for professionals and enthusiasts in electronics, telecommunications, research and development, and education. This oscilloscope provides accurate measurements, waveform analysis, and customizable trigger options, making it a valuable tool for a wide range of applications.
Tips and Tricks For Best Results
To get the best results from the Siglent Technologies SDS1204X-E oscilloscope, consider the following tips and tricks:
- Familiarize yourself with the user manual and guide to fully understand the oscilloscope’s capabilities and functions.
- Experiment with different trigger options to capture the desired waveforms accurately.
- Use the math and measurement features to analyze and interpret the waveforms effectively.
- Adjust the voltage scales to optimize the display based on the specific application and signal amplitude.
- Regularly update the oscilloscope’s firmware to benefit from the latest improvements and features.
Final Thoughts
Product Summary
The Siglent Technologies SDS1204X-E 200MHz Super Phosphor Digital Oscilloscope is a top-notch product, offering a wide range of features and benefits. With its high-quality display, versatile bandwidth, intelligent trigger functionality, and low background noise, it provides accurate measurements and waveform analysis across various applications.
Final Recommendation
If you are in need of a reliable and feature-packed oscilloscope, the Siglent Technologies SDS1204X-E is undoubtedly a great choice. Its performance, durability, and user-friendly interface make it suitable for professionals and enthusiasts alike. Invest in this oscilloscope, and you’ll have a valuable tool that will aid you in your work, research, and educational endeavors.
